STP GOLD LINE BIPLAST: 10MM SOUND-ABSORPTION, VIBRATION-DAMPING, HEAT-INSULATING AND ANTI-SQUEAK MATERIAL

$179.99

1 in stock

SKU: STPBIL10 Category: Tags: , ,

Description

Description

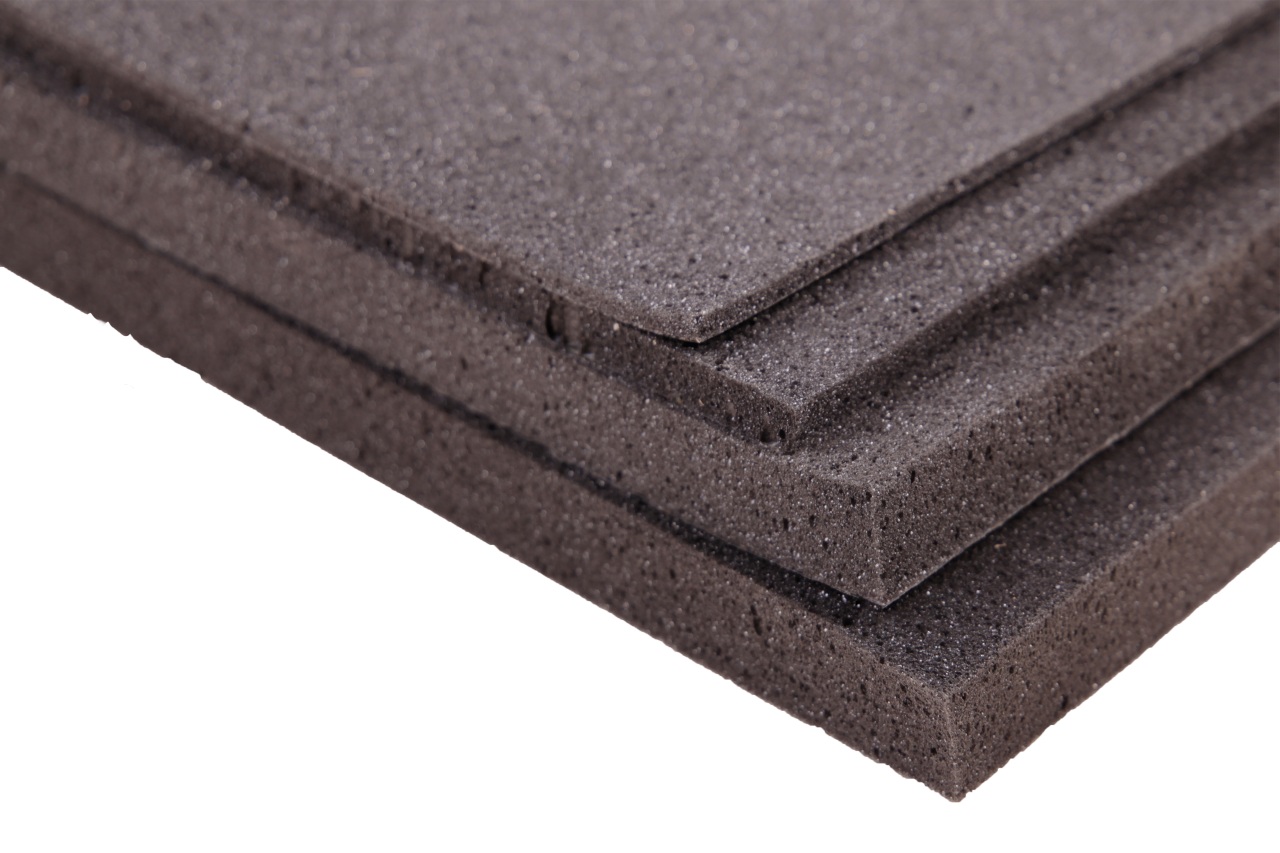

StP Biplast 10 from the Gold Line range is a sound-absorption, vibration-damping, heat-insulating, anti-squeak, self-adhesive material. It can be installed on clean metal or plastic surfaces, ideal installation areas include doors, roof, and plastic panels inside the vehicle. The recommended temperature range for it to perform is -40C to +100C, however it can withstand a temperature up to +150C for a short period of time. The material comprises of an elastic polyurethane open-cell foam coupled with an adhesive mounting layer which is protected with an anti-adhesive film. Biplast 10 includes 10 sheets that are 375 x 500mm in size, 10mm thick, providing a total coverage area of 1.87m2.
Specification
  • COLOUR: DARK GREY
  • PURPOSE: SOUND-ABSORPTION, VIBRATION-DAMPING, HEAT-INSULATION AND ANTI-SQUEAK
  • INSTALLATION SURFACE: CLEAN METAL OR PLASTIC
  • RECOMMENDED APPLICATION AREAS: DOORS, ROOF AND PLASTIC INTERIOR PANELS
  • NUMBER OF SHEETS: 10
  • SHEET SIZE: 375mm x 500mm
  • TOTAL COVERAGE: 1.87 m2
  • SHEET THICKNESS: 10mm
  • MATERIAL-TO-MOUNTING SURFACE BOND STRENGTH: 2 N/cm, min (at peeling of at 90-degrees)
  • INFLAMMABILITY (BURNING RAGE mm/min max): 100mm/min
  • TENSILE STRESS AT BREAK: 70 kPa/min
  • MATERIAL-TO-ANTI-ADHESIVE FILM (PAPER BOND STRENGTH): 0.01-0.20 N/cm
  • SOUND ABSORPTION FACTOR: 0.1 (not less)
  • NOTES: N/A
Features
  • Sound-absorption, vibration-damping, heat-insulating, anti-squeak, self-adhesive material
  • Ideal for doors, roof and plastic interior panels
  • Designed to be installed on clean metal or plastic surfaces
  • Polyurethane layer with an adhesive base that is protected with anti-adhesive film
  • 10 sheets measuring 375 x 500mm each, providing a total coverage of 1.87m2
  • 10mm sheet thickness
